Quilted maple (Acer sp.)

Common Name(s): Quilted maple, blistered maple

Botanical Designation: Not a distinct species of maple; considered a growth/grain anomaly. Occurs most often in soft maples, but is also seen much less often in hard maple. The highest grades of quilted figure occur primarily in  bigleaf maple (Acer macrophyllum).

Distribution: Primarily temperate regions in the Northern Hemisphere

Average Dried Weight: 30.2 to 38.0 lbs/ft3 (485 to 610 kg/m3) depending on species

Janka Hardness: 700 to 950 lbf (4,230 N) depending on species

Comments: Quilted maple is so named for its resemblance to patchwork patterns seen on fabric quilts. Much like birdseye maple, the figure on quilted maple becomes most pronounced when the board has been flatsawn, (which is the opposite of curly maple, which is accentuated through quartersawing). Alternate names and sub-categories for this type of figuring include blistered, curly-quilt, sausage-quilt, tubular-quilt, and angel-step.

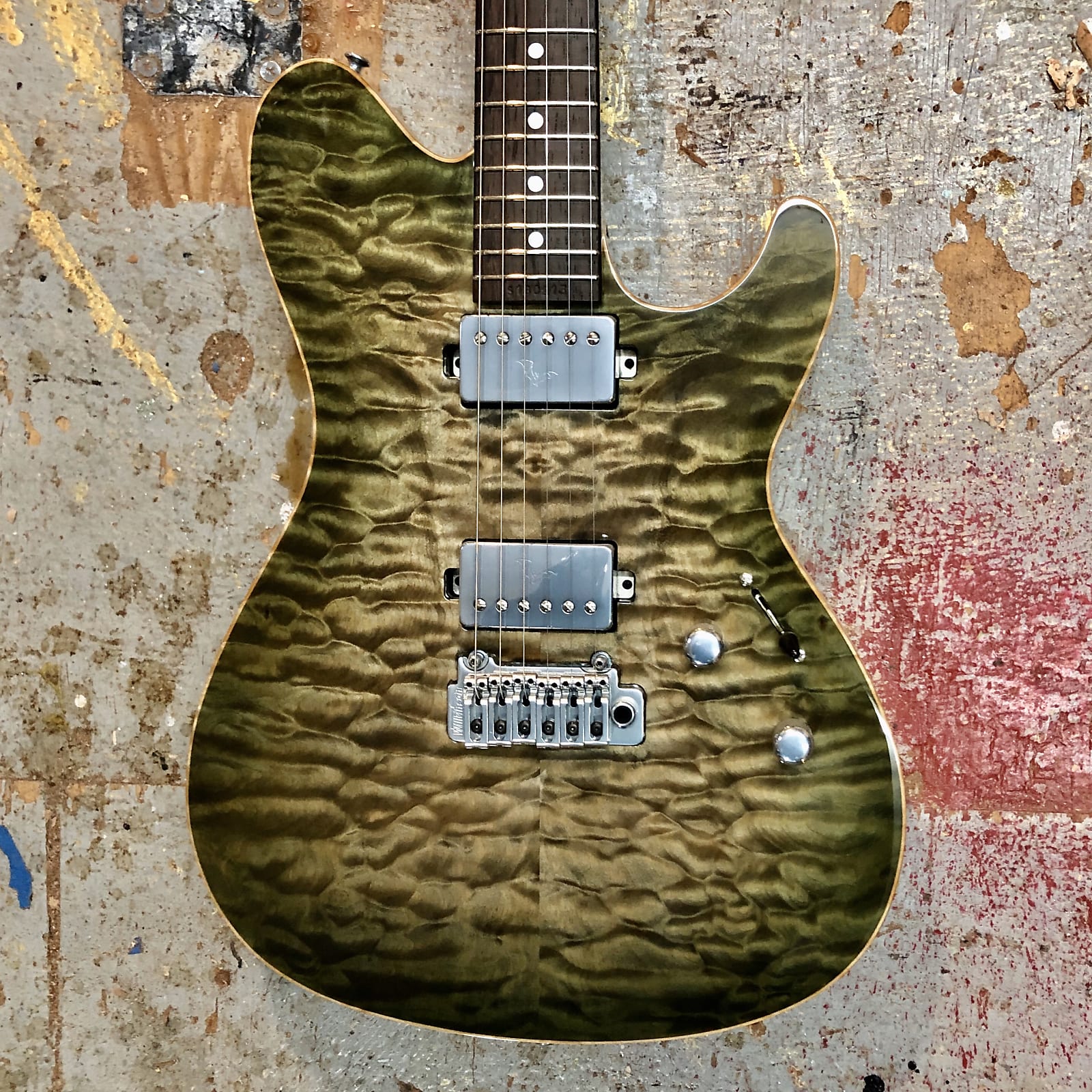

There are varying grades of quilted maple, based upon the perceived depth of the quilt, as well as the purity of color of the wood itself (with a pure and uniform white being the most valuable). Quilted maple billets are often sold for extremely high prices for use as tops of electric guitars. They are frequently dyed in outlandish colors such as blue, green, or purple to give an “electric” effect to the grain pattern.

Images: Drag the slider up/down to toggle between raw and finished wood. (A special thanks to Steve Earis for providing a veneer sample for this wood figure.)



Quilted Maple (dyed blue)
Quilted maple (dyed blue)
Quilted Maple (56" x 6.0")
Quilted maple (56″ x 6.0″)

Identification: Since quilted maple is not a distinct species, the written information and images below are for bigleaf maple (Acer macrophyllum). See the article on Hardwood Anatomy for definitions of endgrain features.

Bigleaf maple (endgrain 10x)
Bigleaf maple (endgrain 1x)
Bigleaf maple (endgrain 1x)

Porosity: diffuse porous

Arrangement: solitary and radial multiples

Vessels: small to medium; moderately numerous to numerous; heartwood deposits sometimes present

Parenchyma: banded (marginal)

Rays: narrow to medium, normal spacing

Lookalikes/Substitutes: Bigleaf maple is more or less indistinguishable from other soft maples such as red maple (Acer rubrum), however, it can usually be separated from hard maple (A. saccharum) not only on the basis of weight, but also ray width. Bigleaf maple tends to have more uniform medium-width rays, while hard maple has a greater range of wide and narrow rays.

Notes: None.
